Ultra High-Speed, High-Resolution 2D/3D AcceleratorClocking in at over 100 billion operations per second, the Voodoo3 3000 pushes the limits of ultra high-resolution gaming. Delivering liquid smooth frame rates of over 60 frames per second, the Voodoo 3 combines the world’s fastest 2D with a dual 32-bit pipeline to provide a mind-altering gaming experience. Unleashing an unrivaled 7 million triangles a second, the Voodoo 3's Patented Single-Pass, Single Cycle Multi-Texturing provides awesome visual effects at resolutions as high as 2046x1536. Designed to enhance the latest generation of computer hardware, the Voodoo 3 provides DVD hardware acceleration to ensure a seemless 30 frame per second without framedrop. And the standard TV/S-Video jack on the Voodoo 3 instantly allows you to output to a compatible TV or Monitor to create the ultimate home entertainment experience.

Voodoo 3

Voodoo 3 1000(Velocity 200) Features

16MB SGRAM 125MHz Core Clock Speed 5 Million Triangles/sec 250 Megatexels/sec. Supports resolutions up to 2048x1536 Full 128-Bit 2D accelerator 300 MHz RAMDAC DVD Hardware Assist Supports DirectX, Glide and OpenGL Alpha-Blending Single Pass, Single Cycle Bump Mapping Single Pass, Single Cycle Trilinear MIP-Mapping Patented Multi-Texturing Programable Fog Tables Sub-Pixel and Sub-Texel Correction Gouraud Shading

Voodoo 3 2000 Features

16MB SDRAM 143MHz Core Clock Speed 6 Million Triangles/sec 286 Megatexels/sec. Supports resolutions up to 2048x1536 Full 128-Bit 2D accelerator 300 MHz RAMDAC DVD Hardware Assist Supports DirectX, Glide and OpenGL Alpha-Blending Single Pass, Single Cycle Bump Mapping Single Pass, Single Cycle Trilinear MIP-Mapping Patented Multi-Texturing Programable Fog Tables Sub-Pixel and Sub-Texel Correction Gouraud Shading

Voodoo 3 3000 Features

16MB SDRAM 166MHz Core Clock Speed 7 Million Triangles/sec 333 Megatexels/sec. Supports resolutions up to 2048x1536 Full 128-Bit 2D accelerator 350 MHz RAMDAC TV/S-Video out DVD Hardware Assist Supports DirectX, Glide and OpenGL Alpha-Blending Single Pass, Single Cycle Bump Mapping Single Pass, Single Cycle Trilinear MIP-Mapping Patented Multi-Texturing Programable Fog Tables Sub-Pixel and Sub-Texel Correction Gouraud Shading

Voodoo 3 3500 Features

Based on the acclaimed Voodoo3 graphics accelerator technology, the Voodoo3 3500 TV combines the industry’s most powerful 3D and 2D graphics with complete TV tuner and multimedia functionality in a single AGP board. Featuring support for MPEG 2, DVD, FM stereo with dbx, and high-resolution displays, the new board includes the most feature-filled entertainment card for hard-core game enthusiasts and cutting-edge multimedia entertainment consumers.

16MB SDRAM 183MHz Core Clock Speed 8 Million Triangles/sec 367 Megatexels/sec. Supports resolutions up to 2048x1536 Full 128-Bit 2D accelerator 350 MHz RAMDAC TV/S-Video out DVD Hardware Assist Supports DirectX, Glide and OpenGL Alpha-Blending Single Pass, Single Cycle Bump Mapping Single Pass, Single Cycle Trilinear MIP-Mapping Patented Multi-Texturing Programable Fog Tables Sub-Pixel and Sub-Texel Correction Gouraud Shading

Other Information

The original Rampage was supposed to come out when the Voodoo 3 ended up being released, but Rampage wasn't complete by then, so the Voodoo 3 was originally released as a placeholder until Rampage was finished. It ended up being number 1 in retail sales, but in the OEM department it did poorly. People would rather have slow 32 bit on the TNT2, than fast 16 bit on the Voodoo 3. The voodoo 3 was SLI compatible, but no consumer SLI boards were produced. Below is a picture of a Voodoo 3 SLI board:

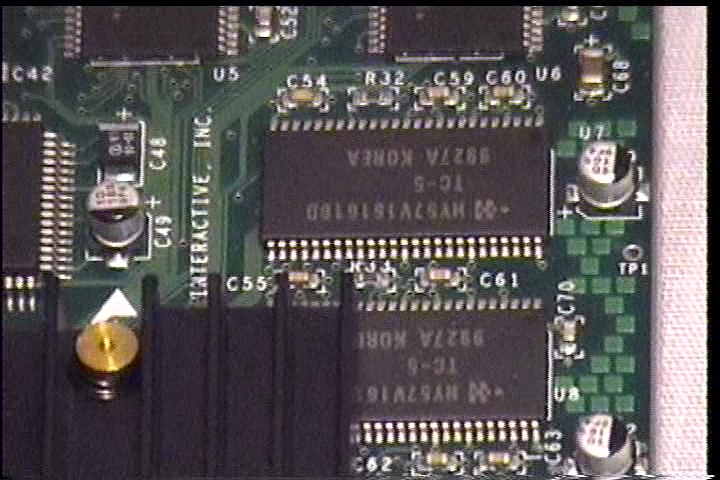

The was also a Voodoo 3 3500 made that ran at 200mhz:

Pictures

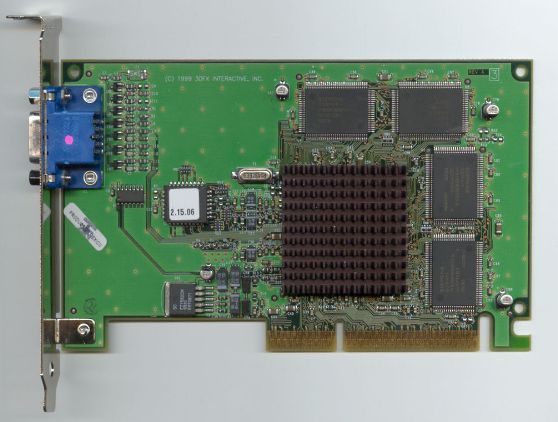

The Voodoo 3 1000 (above)

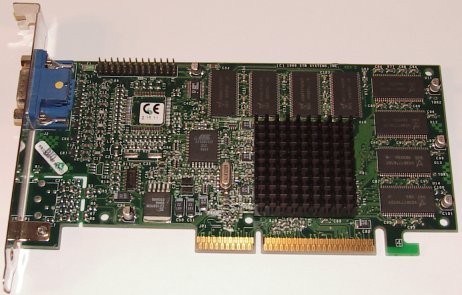

The Voodoo 3 2000 (above)

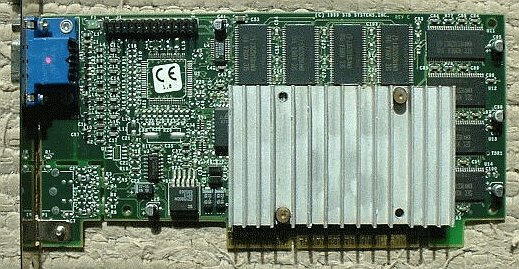

The Voodoo 3 3000 (above)

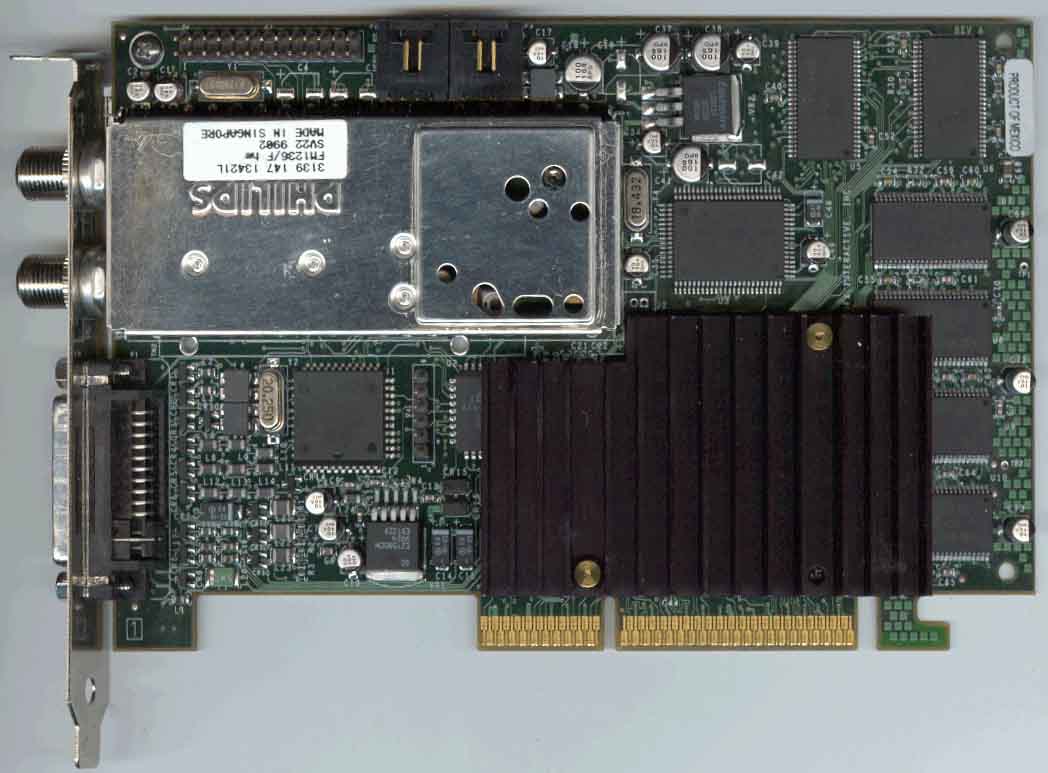

The Front Of The Voodoo 3 3500 (above)

The Back Of The Voodoo 3 3500 (above)

The Cable For The Voodoo 3 3500 (above)

Voodoo 3 Documentation

Voodoo 3 Data Book

Voodoo 3 Programming Guide

Other Voodoo 3 Stuff

Voodoo 3 Launch Animation

Voodoo 3 Tweaking Program 2.7
